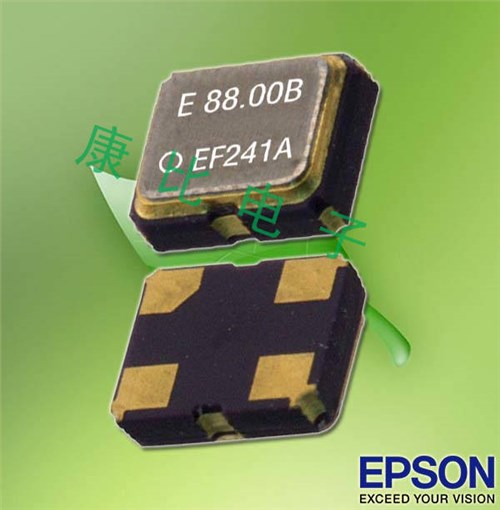

北美編碼 SG-210STF25.0000ML3 1.6V SMD 2520mm,愛普生晶振,石英晶體振蕩器，2520mm晶振,SPXO振蕩器,日本進口晶振,編碼SG-210STF13.0000ML3，型號SG-210STF，尺寸為2520mm，頻率為13MHZ，頻率公差±50ppm，輸出波形CMOS，電壓1.600to3.600V，工作溫度-40to+85°C，產品具備超高的可靠性能和穩定性能，比較適合用于無線充電器，網絡設備，智能音響，導航定位系統等領域.

為了提供高質量和可靠的有源晶體振蕩器產品和服務，滿足客戶需求，精工愛普生早期努力獲得ISO9000系列認證，并為日本和國外所有商業機構的ISO9001。我們還獲得了IATF 16949認證。北美編碼 SG-210STF25.0000ML3 1.6V SMD 2520mm.北美編碼 SG-210STF25.0000ML3 1.6V SMD 2520mm 參數表

項目

符號

規格說明

條件

輸出頻率范圍

4 MHz
14.7456 MHz
25 MHz
33.3333 MHz

8 MHz
16 MHz
26 MHz
40 MHz

10 MHz
20 MHz
27 MHz
48 MHz

12 MHz
24 MHz
32 MHz
50 MHz

12.288 MHz
24.576 MHz
33.33 MHz
72 MHz

電源電壓

VCC

1.60 V to 3.63 V

4 MHz≤fo≤50 MHz, T_use = +105 °C Max .

Refer to
Figure 1

1.71 V to 3.63 V

fo = 72 MHz, T_use = +85 °C Max.

2.25 V to 3.63 V

fo = 72 MHz, T_use = + 105 °C Max.

儲存溫度

T_stg

-55 °C to +125 °C

SG2016CAN, SG3225CAN

-40 °C to +125 °C

All others

工作溫度

T_use

-20 °C to +70 °C, -40 °C to +85 °C, -40 °C to + 105 °C

See of figure *1

頻率公差

f_tol

±25 × 10-6

-20 °C to +70 °C

±50 × 10-6

-40 °C to +85 °C, -40 °C to + 105 °C

電流消耗

ICC

VCC= 1.8 V ± 10 %

VCC= 2.5 V ± 10 %

VCC= 3.3 V ± 10 %

1.5 mA Max.

1.6 mA Max.

1.8 mA Max.

No load condition, 4 MHz≤fo≤20 MHz

1.8 mA Max.

2.0 mA Max.

2.2 mA Max.

No load condition, 20 MHz < fo≤40 MHz

2.1 mA Max.

2.4 mA Max.

2.6 mA Max.

No load condition, 40 MHz < fo≤50 MHz

2.4 mA Max.

2.8 mA Max.

3.0 mA Max.

No load condition, fo = 72 MHz

待機電流

I_std

2.1 µA Max.

2.5 µA Max.

2.7 µA Max.

ST =GND

占空比

SYM

45 % to 55 %

50 % VCClevel , L_CMOS≤15 pF

輸出電壓

VOH

90 % VCCMin .

1.8 V ± 10 %

2.5 V ± 10 %

3.3 V ± 10 %

VOL

10 % VCCMax.

IOH

- 1.5 mA

-3 mA

-4 mA

IOL

1.5 mA

3 mA

4 mA

VOH-2

VCC- 0.4 V Min .

1.8 V± 10 %

2.5 V± 10 %

3.3 V± 10 %

VOL-2

0.4 V Max.

IOH

-3 mA

-4 mA

-6 mA

IOL

3 mA

4 mA

6 mA

輸出負載狀態
(CMOS)

L_CMOS

15 pF Max.

輸入電壓

VIH

80 % VCCMin .

ST terminal

VIL

20 % VCCMax.

上升時間和下降時間

tr / tf

3 ns Max.
3.5 ns Max . (@1.8 V± 10 %)

20 % VCCto 80 % VCClevel, L_CMOS = 15 pF

振蕩啟動時間

t_str

3 ms Max.

T = 0 at 90 % VCC

頻率老化

f_age

±3 × 10-6/ year Max.

+25 °C, First year

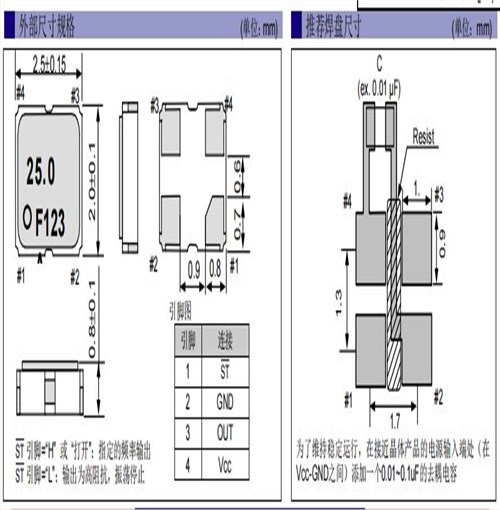

北美編碼 SG-210STF25.0000ML3 1.6V SMD 2520mm 尺寸圖

Connection

Function

terminal

function

Oscillator circuit

Output

HIGH or "open"

Oscillation

Specified frequency: Enable

LOW

Oscillation stop

High impedance: Disable

GND

Ground

OUT

Clock output

VCC

Power supply

進口晶振編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓
X1G0041710077	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710078	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710079	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710080	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710081	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710083	SG-210STF	1.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710084	SG-210STF	1.228800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710085	SG-210STF	1.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710086	SG-210STF	1.536000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710087	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710088	SG-210STF	2.457600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710089	SG-210STF	2.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710090	SG-210STF	3.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710091	SG-210STF	3.072000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710092	SG-210STF	3.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710093	SG-210STF	3.579545 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710094	SG-210STF	4.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710095	SG-210STF	4.800000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710096	SG-210STF	4.915200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710097	SG-210STF	5.644800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710098	SG-210STF	6.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710099	SG-210STF	6.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710100	SG-210STF	6.750000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710101	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710102	SG-210STF	7.159090 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710103	SG-210STF	7.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710104	SG-210STF	8.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710105	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710106	SG-210STF	9.600000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710107	SG-210STF	9.830400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710108	SG-210STF	15.625000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710109	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710110	SG-210STF	16.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710111	SG-210STF	16.650000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710112	SG-210STF	16.666500 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710113	SG-210STF	18.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710114	SG-210STF	19.440000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710115	SG-210STF	19.660800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710116	SG-210STF	31.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710117	SG-210STF	32.768000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710118	SG-210STF	33.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710119	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710120	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710121	SG-210STF	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710122	SG-210STF	66.667000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710124	SG-210STF	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710125	SG-210STF	74.176000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710126	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710127	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710128	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710136	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710140	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710141	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710144	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710146	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710147	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710151	SG-210STF	66.670000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710152	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710153	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710154	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710155	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710156	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710159	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710162	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710163	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710164	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710165	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710188	SG-210STF	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710189	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710192	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710193	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710195	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710196	SG-210STFEPSON晶振	66.660000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710197	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710198	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710199	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.600 V
X1G0041710201	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710202	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710203	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710204	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710205	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710206	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710209	SG-210STF	2.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710220	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710221	SG-210STF	66.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710222	SG-210STF	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V
X1G0041710223	SG-210STF	7.680000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710225	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710226	SG-210STF	28.636300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710227	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710228	SG-210STF	45.158400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710229	SG-210STF	30.720000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
